Rota 3R

Benchtop General Purpose Centrifuge

Rota 3R

Multi-Talented for Everyday Lab Tasks

Contact an Expert

Swing-out rotor

  • 15 ml
  • 10,000 rpm
  • 9,391xg

Fixed-angle rotor

  • 200 ml
  • 20,000 rpm
  • 32,198xg

User

  • Hospitals
  • Veterinary clinics
  • Food labs
  • Universities & colleges
  • Pharmaceutical labs
  • Cell culture labs
  • Synthesis in Analytical Chemistry

Benchtop General Purpose Centrifuge

The general purpose centrifuge Rota 3 and Rota 3R combines the best features of a micro centrifuge and multi-purpose benchtop centrifuge in a single instrument, giving the user the best of both worlds. Numerous rotors for tubes and containers extend application possibilities of this unique centrifuge. The maximum capacity of the Rota 3 series is 200ml at an RCF of 32’198xg. The 2.0ml and 50ml rotor make the Rota 3R centrifuge suitable for  a variety of applications such as DNA, RNA, Protein isolation and Synthesis in organic and inorganic chemistry.The powerful refrigeration system of the Rota 3R keeps samples at temperatures as low as 4°C degrees during continuous operation at the highest speed.

lock

Ergonomic Lid Locking

Our precision lid-locking mechanism ensures a secure seal with minimal physical effort, reducing laboratory fatigue and enhancing user confidence during every operation.

aspect_ratio

Footprint

At just 66.3 cm wide, the ROTA 3R maximizes your bench space while delivering professional‑grade rotational velocity.

volume_off

Whisper-Quiet Operation

Powered by a precision‑engineered European brushless motor, the ROTA  3R delivers professional‑grade rotational velocity with minimal noise. This advanced motor design eliminates friction and vibration, ensuring smooth operation that reduces laboratory fatigue and maintains a calm working environment.

PDF
User Manual
3.4 MB
Max. capacity [ml]
Swing-out rotor(max capacity [ml]) 20 [ml] 10 x 2.0ml
Fixed-angle rotor(max capacity [ml]) 200 [ml] 4x50ml
Max. RCF 32,198 x g
Max. speed [rpm] 20,000
Min. speed [rpm] 800
Noise level at maximum speed (approximate) [db(A)]
Fixed-angle rotor (8450) 56 db (A)
Swing-out rotor with bucket(404105) 50 db (A)
Max. acceleration time [s]
Fixed-angle rotor (8450) 50
Swing-out rotor with bucket (404105) 42
Max. braking time [s]
Fixed-angle rotor (8450) 36
Swing-out rotor with bucket (404105) 30
Temperature setting range [°C] -10°C to +40°C
Power consumption [W] 750
Height x Width x Depth [mm] 380 x 620 x 540
Height with open lid [mm] 785
Weight without rotor [kg] 65
Refrigerant R 134a
Charge [kg] / pressure [bar] 0.25
CO2 equivalent [t] 0.37

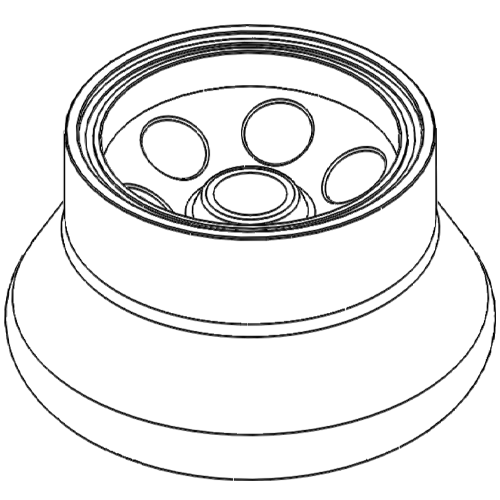

Fixed-angle rotor 12096
Fixed-Angle Rotor 200150

A006x30ml

6 x 30 ml
11,000 rpm
11,093 x g
Fixed-Angle Rotor 200145

A004x030 ml

4 x 30 ml
16,000 rpm
21,179 x g
Fixed-Angle Rotor 200137

A020x005ml

20 x 5 ml
16,000 rpm
20,035 x g
Fixed-Angle Rotor 200132

A010x008ml

10 x 8 ml
16,000 rpm
22,324 x g
Fixed-Angle Rotor 200142

L024x1.5ml with Lid

24 x1.5 ml
17,500 rpm
29,103 x g
Fixed-Angle Rotor 200143

A032x0.2ml (PCR)

32 x 0.2 ml
15,000 rpm
15,345 x g

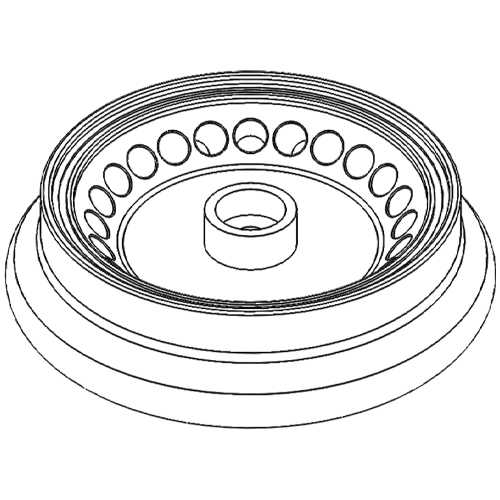

Fixed-Angle Rotor 200139

A024x1.5ml

24 x 1.5 ml
20,000 rpm
32,198 x g

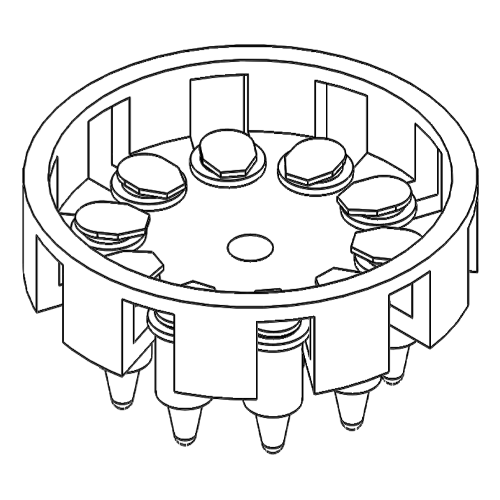

Swing-Out Rotor 200154

S010x1.5ml

10 x 1.5 ml
10,000 rpm
9,391 x g
Fixed-Angle Rotor 200147

A004x50ml

4 x 50 ml
10,000 rpm
10,062 x g

More from Scientiquipp A wide range of options

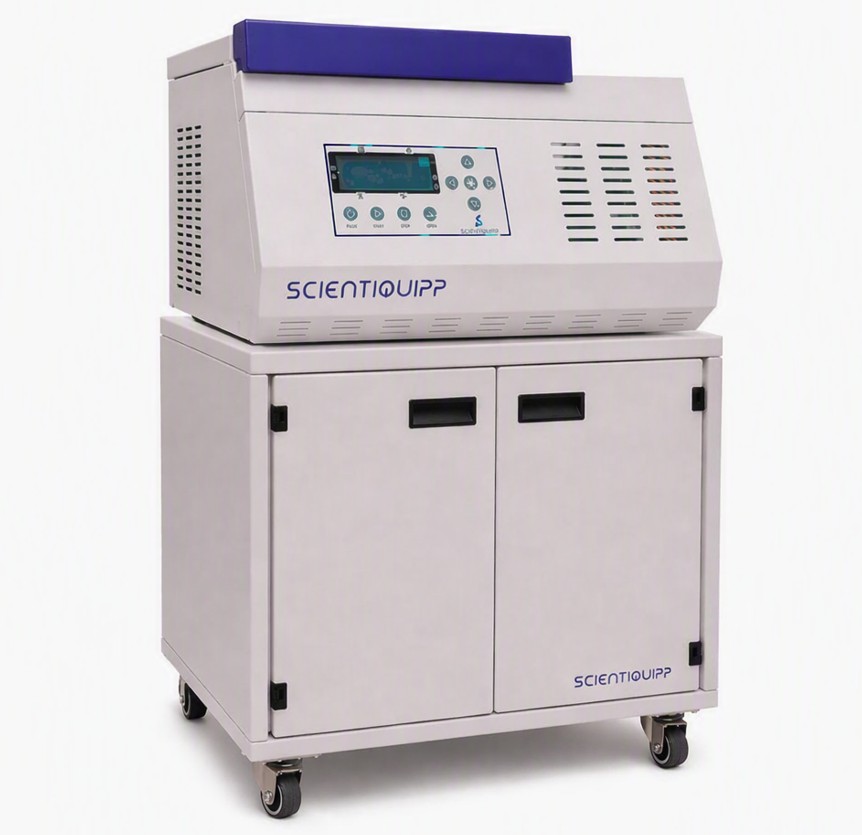

Centrifuge Table

Scientiquipp centrifuge tables are offered in three sizes, each precisely matched to the respective centrifuge dimensions. These tables provide an ergonomic working height, alongside a well-considered footprint for efficient space utilization. Constructed from coated sheet steel, they feature a storage compartment with two doors and a practical shelf. Lockable castors ensure the tables can be repositioned and secured easily within laboratory environments.
